উৎপত্তি স্থল: | চীন |
পরিচিতিমুলক নাম: | BRITEC |
মডেল নম্বার: | BR-25M 4P |
ন্যূনতম চাহিদার পরিমাণ: | 100 পিস/পিস |
---|---|
প্যাকেজিং বিবরণ: | রপ্তানি মোরক |
ডেলিভারি সময়: | অর্থপ্রদানের 15 দিনের মধ্যে পাঠানো হয়েছে |
পরিশোধের শর্ত: | এল/সি, ডি/এ, টি/টি, ওয়েস্টার্ন ইউনিয়ন |
যোগানের ক্ষমতা: | 50000 পিস/পিস মাস |
ব্র্যান্ড: | BRITEC | মডেল: | BR-25M 4P |
---|---|---|---|
আইটেম নাম: | সার্জ সুরক্ষা ডিভাইস | ক্লাস স্ট্যান্ডার্ড: | 1+2+3 টাইপ করুন |
ইউসি: | 275V | আইএমপি: | 25kA |
খুঁটি: | 4P | সুরক্ষা বর্গ: | IP20 |
অপারেটিং তাপমাত্রা: | -40℃—80℃ | উপাদান: | থার্মোপ্লাস্টিক UL94-V0 |
লক্ষণীয় করা: | 25KA T1 Surge Protector,Type1 4P Surge Protector,BRITEC Type 1 Surge Protection Device |

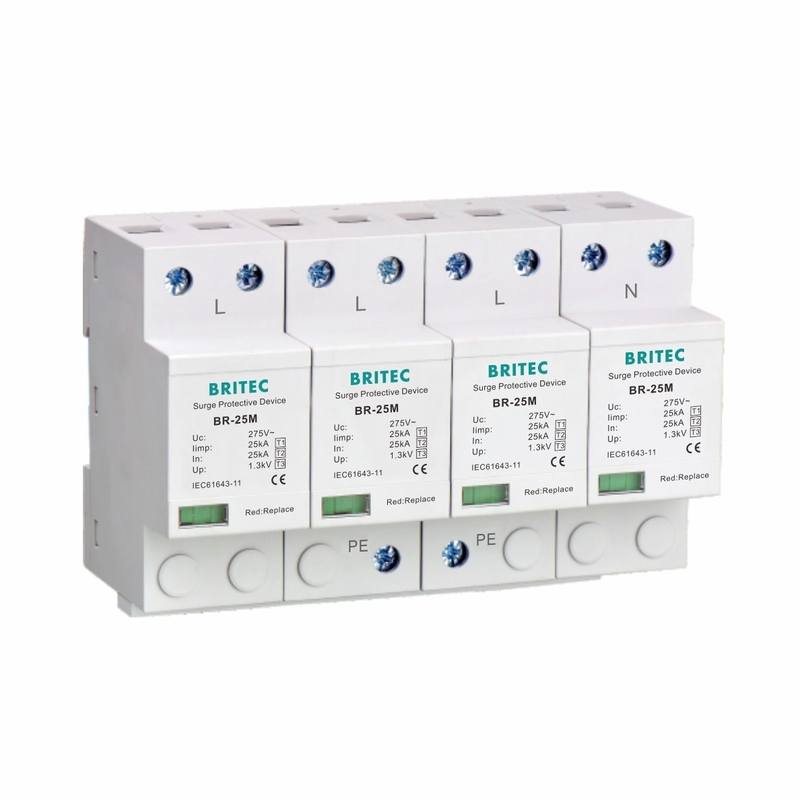

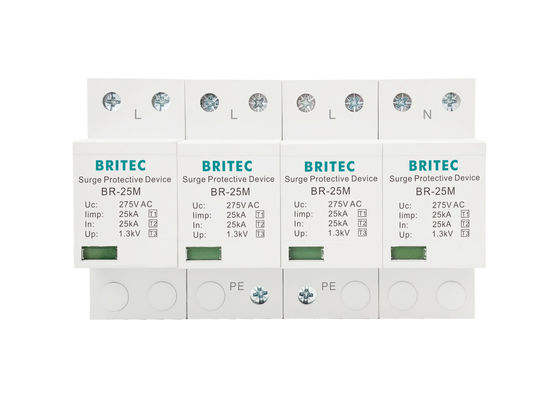

T1 Surge Protector 25KA 4P Surge Protection Device Presentation:
T1 Surge Protector 25KA 4P Surge Protection Device Technology characteristic:
BR-25M 4P | |
SPD classification according to EN61643-11 with 5M | Type 1 + Type 2 + Type 3 |
SPD classification according to IEC61643-11 with 5M | Class I + Class II + Class III |
Rated operating voltage Un | 400V |
Max. continuous operating a.c. voltage Uc | 275V |
Voltage protection level Up | ≤1.3kV |
Lightning impulse current (10/350us) Iimp | 25kA |
Nominal discharge current (8/20us) In | 25kA |
Maximum discharge current (8/20us) Imax | 100kA |
Response time tA | ≤25ns |
Cross-section area (Min.) | 4mm2 |
Cross-section area (Max.) | 35mm2 |
Max. backup fuse | 315A gG |
Operating temperature range Tu | -40℃—80℃ |
Relative humudity(25°C) | ≤95% |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Dimension:
About us:
Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 17 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.
Q1: Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity.
Q2: Are your surge protector supported for customization?
A: Yes, of course.
Q3: How can you ensure your After-sales Service?
A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.
Q4: Are you a trading company or a manufacturer?
A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
